How to handle the square and circular pads on the back of the module? Is soldering required?

Last Updated on：2024-03-21 06:07:21

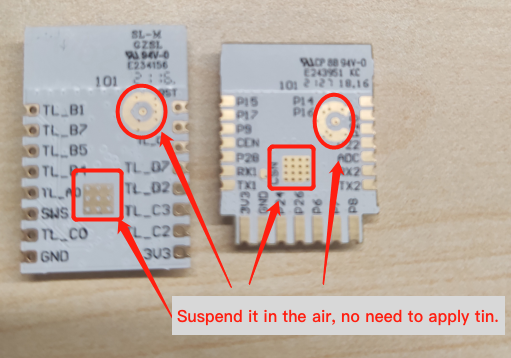

See the attached figure for the circular and square pad areas. The pads can be left unconnected and do not require soldering when the product is used.
