How do I flash a small batch module developed in no-code development mode?

1. Purchase an adapter board that supports the module model of the product, and lead out the module pins for flashing. Purchase link: https://iot.tuya.com/purchase/store?page=1&tag=burn_tool&q=CB2S-SO(R-1)

For some modules, if no flashing tool is purchased, you can solder wires for flashing by yourself.

2. Purchase a serial port board. Purchase link: https://iot.tuya.com/purchase/store?page=1&tag=&q=3M%E9%AB%98%E9%80%9F%E4%B8%B2%E5%8F%A3%E6%9D%BF

You can also purchase a 3.3V serial port board from other channels.

Note: If you use a Wi-Fi and Bluetooth combo module, Wi-Fi module, or BP series module, a serial port board is required. If you use a ZT or BT series module, a serial port board and a Telink writer are required. If you use a ZS or TYZS series module, a USB-to-TTL serial port and a J-Link writer are required.

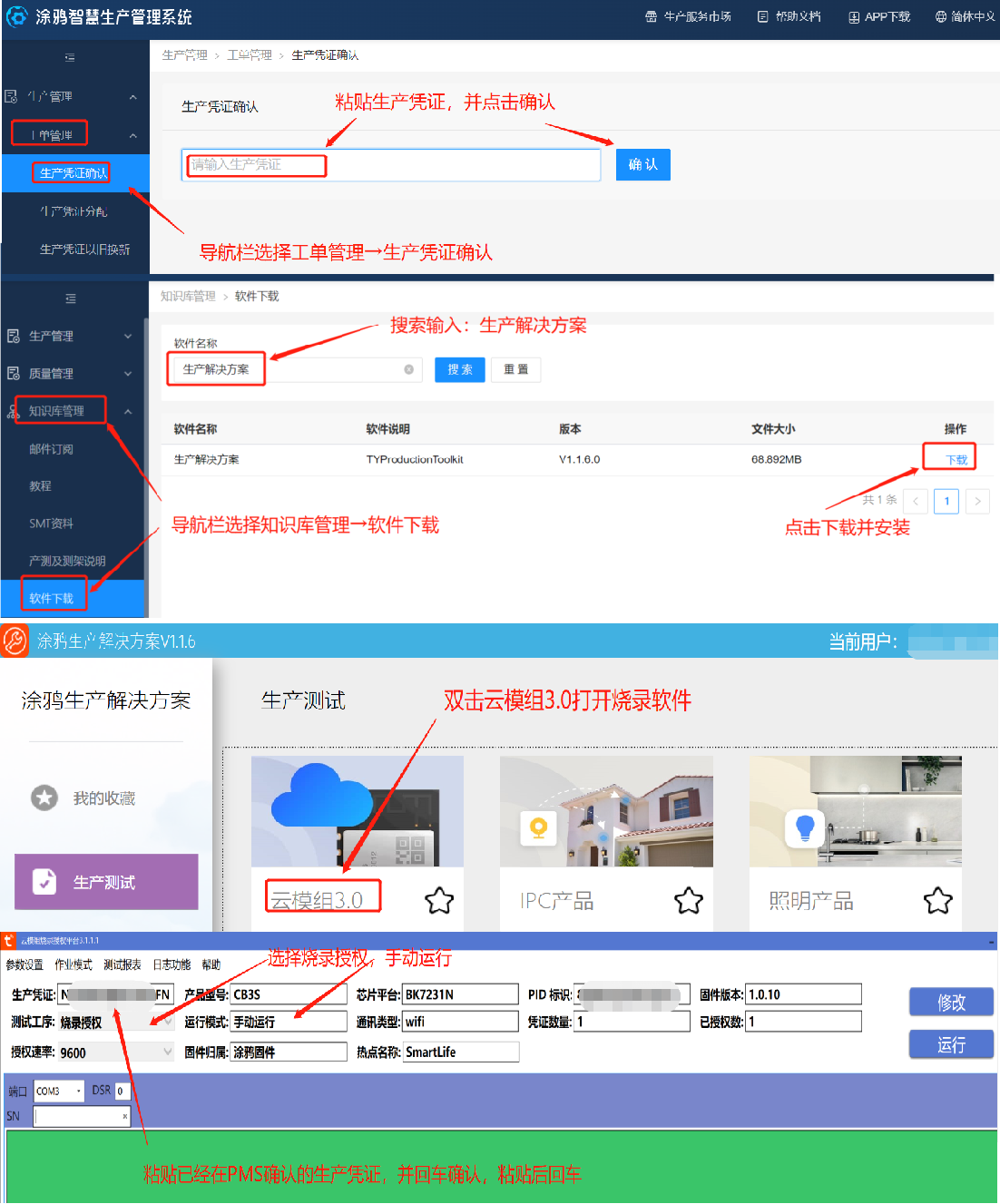

3. Apply for a Tuya Smart PMS account, log into PMS and download TYProductionToolkit. Download link: https://pms.tuya.com/knowledge-base/soft

Install the software and click TYMZ 3.0.

Download the production credential when you place an order and confirm the production credential in PMS.https://pms.tuya.com/production-manage/order-manage/token-confirm

Import the production credential to Cloud Module 3.0

4. Start the flashing. For more information about wiring, see https://developer.tuya.com/en/docs/iot/overview-of-download-firmware-and-authorization?id=Ka4zcqfo0eb5u
